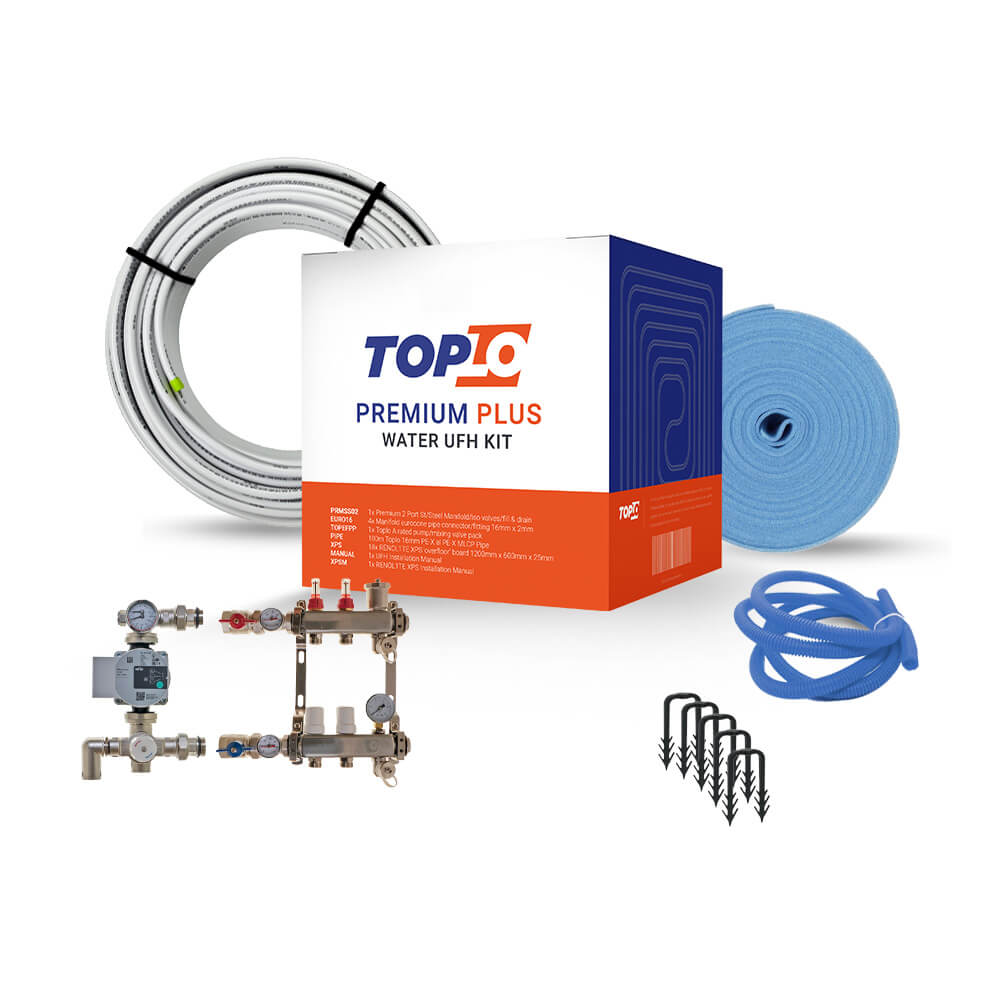

Premium Plus Underfloor Heating Kit

SKU: PP2PKX

Premium Plus Underfloor Heating kit, with thermostatic blending valve and circulating pump are ideally suited to the temperature control of individual under floor heated rooms.

Request Price Match

Size (11)

Optional Upgrades (2)

Upgrades suited for this kit for purchase.

Swap PE-X al PE-X to PE-RT FREE
Grundfos UFH Control Pack £30.00
Compact prefabricated kit includes the thermostatic mixing valve, an ERP rated 7 metre circulating pump, and a flow manifold connection tee piece which includes 1/2" FBSP tapping.

Thermostats / Controls (4)

Control options, for other model stats or 12v networked stats view our controls section for a full list or contact us.

TopLo Wired 230v Thermostat (Ice White) £44.95
WiFi app enabled Thermostat (Wired 230v), no hub required.
TopLo Wired 230v Thermostat (Black) £44.95
WiFi app enabled Thermostat (Wired 230v), no hub required.
TopLo Smart WIRELESS WiFi (White) £54.99
Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.
TopLo Smart WIRELESS WiFi (Black) £54.99
Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.

Premium Plus Underfloor Heating 2 Port 200m Kit
Max Floor Coverage	40m²
Manifold	2 Port stainless steel manifold – includes filling & drain points, Taconova (Swiss) flow meters, air vent, pressure gauge, flow & return temperature gauges, isolation valves, and pipe connectors
Pump Pack	'Easy fit pump pack' with Wilo EuP A-rated modulating circulating pump and blending valve
Edge Insulation	50m
Pipe Conduit	2m
Staples	400 push fit staples (clips for tacker guns available on request)
Pipe	200m x 16mm MLCP PE-X al PE-X WRAS approved CE ISO 9001:2008
Kit Coverage	40m² @ 200mm centres 30m² @ 150mm centres 20m² @ 100mm centres
Manual	Included

Premium Plus Underfloor Heating 3 Port 300m Kit
Max Floor Coverage	60m²
Manifold	3 Port stainless steel manifold – includes filling & drain points, Taconova (Swiss) flow meters, air vent, pressure gauge, flow & return temperature gauges, isolation valves, and pipe connectors
Pump Pack	'Easy fit pump pack' with Wilo EuP A-rated modulating circulating pump and blending valve
Edge Insulation	50m
Pipe Conduit	3m
Staples	600 push fit staples (clips for tacker guns available on request)
Pipe	300m x 16mm MLCP PE-X al PE-X WRAS approved CE ISO 9001:2008
Kit Coverage	60m² @ 200mm centres 45m² @ 150mm centres 30m² @ 100mm centres
Manual	Included

Premium Plus Underfloor Heating 4 Port 400m Kit
Max Floor Coverage	80m²
Manifold	4 Port stainless steel manifold – includes filling & drain points, Taconova (Swiss) flow meters, air vent, pressure gauge, flow & return temperature gauges, isolation valves, and pipe connectors
Pump Pack	'Easy fit pump pack' with Wilo EuP A-rated modulating circulating pump and blending valve
Edge Insulation	75m
Pipe Conduit	4m
Staples	800 push fit staples (clips for tacker guns available on request)
Pipe	400m x 16mm MLCP PE-X al PE-X WRAS approved CE ISO 9001:2008
Kit Coverage	80m² @ 200mm centres 60m² @ 150mm centres 40m² @ 100mm centres
Manual	Included

Premium Plus Underfloor Heating 5 Port 500m Kit
Max Floor Coverage	100m²
Manifold	5 Port stainless steel manifold – includes filling & drain points, Taconova (Swiss) flow meters, air vent, pressure gauge, flow & return temperature gauges, isolation valves, and pipe connectors
Pump Pack	'Easy fit pump pack' with Wilo EuP A-rated modulating circulating pump and blending valve
Edge Insulation	100m
Pipe Conduit	5m
Staples	1000 push fit staples (clips for tacker guns available on request)
Pipe	500m x 16mm MLCP PE-X al PE-X WRAS approved CE ISO 9001:2008
Kit Coverage	100m² @ 200mm centres 75m² @ 150mm centres 50m² @ 100mm centres
Manual	Included

Premium Plus Underfloor Heating 6 Port 600m Kit
Max Floor Coverage	120m²
Manifold	6 Port stainless steel manifold with all standard fittings and gauges
Pump Pack	Wilo EuP A-rated modulating pump and blending valve
Edge Insulation	125m
Pipe Conduit	6m
Staples	1200 push fit staples (clips for tacker guns available)
Pipe	600m x 16mm MLCP PE-X al PE-X
Kit Coverage	120m² @ 200mm 90m² @ 150mm 60m² @ 100mm
Manual	Included

Premium Plus Underfloor Heating 7 Port 700m Kit
Max Floor Coverage	140m²
Manifold	7 Port stainless steel manifold with flow meters, vents, gauges, and valves
Pump Pack	Easy fit Wilo EuP A-rated system
Edge Insulation	150m
Pipe Conduit	7m
Staples	1400 push fit staples
Pipe	700m x 16mm MLCP PE-X al PE-X
Kit Coverage	140m² @ 200mm 105m² @ 150mm 70m² @ 100mm
Manual	Included

Premium Plus Underfloor Heating 8 Port 800m Kit
Max Floor Coverage	160m²
Manifold	8 Port stainless steel manifold, complete with all necessary fittings
Pump Pack	Wilo EuP A-rated modulating unit with valve
Edge Insulation	150m
Pipe Conduit	8m
Staples	1600 push fit staples
Pipe	800m x 16mm MLCP PE-X al PE-X
Kit Coverage	160m² @ 200mm 120m² @ 150mm 80m² @ 100mm
Manual	Included

Premium Plus Underfloor Heating 9 Port 900m Kit
Max Floor Coverage	180m²
Manifold	9 Port stainless steel manifold with all fittings and gauges
Pump Pack	Wilo EuP A-rated pump with blending valve
Edge Insulation	175m
Pipe Conduit	9m
Staples	1800 push fit staples
Pipe	900m x 16mm MLCP PE-X al PE-X
Kit Coverage	180m² @ 200mm 135m² @ 150mm 90m² @ 100mm
Manual	Included

Premium Plus Underfloor Heating 10 Port 1000m Kit
Max Floor Coverage	200m²
Manifold	10 Port stainless steel manifold with Swiss-made flow meters and full instrumentation
Pump Pack	Wilo EuP A-rated circulating pump + blending valve
Edge Insulation	200m
Pipe Conduit	10m
Staples	2000 push fit staples
Pipe	1000m x 16mm MLCP PE-X al PE-X
Kit Coverage	200m² @ 200mm 150m² @ 150mm 100m² @ 100mm
Manual	Included

Premium Plus Underfloor Heating 11 Port 1100m Kit
Max Floor Coverage	220m²
Manifold	11 Port stainless steel manifold with isolation valves and Taconova flow control
Pump Pack	Wilo EuP A-rated pump and mixing valve unit
Edge Insulation	225m
Pipe Conduit	11m
Staples	2200 push fit staples
Pipe	1100m x 16mm MLCP PE-X al PE-X
Kit Coverage	220m² @ 200mm 165m² @ 150mm 110m² @ 100mm
Manual	Included

Premium Underfloor Heating 12 Port 1200m Kit
Max Floor Coverage	240m²
Manifold	12 Port stainless steel manifold with complete flow, temp, and safety setup
Pump Pack	‘Easy fit’ modulating Wilo EuP A-rated system
Edge Insulation	250m
Pipe Conduit	12m
Staples	2400 push fit staples
Pipe	1200m x 16mm MLCP PE-X al PE-X
Kit Coverage	240m² @ 200mm 180m² @ 150mm 120m² @ 100mm
Manual	Included
