Premium Underfloor Heating Kit

SKU: P2PKX

Premium Underfloor heating kit, with thermostatic blending valve with circulating pump are ideally suited to the temperature control of individual under floor heated rooms (max. 40m²)

Request Price Match

Size (11)

Optional Upgrades (2)

Upgrades suited for this kit for purchase.

Swap PE-X al PE-X to PE-RT FREE
Grundfos UFH Control Pack £30.00

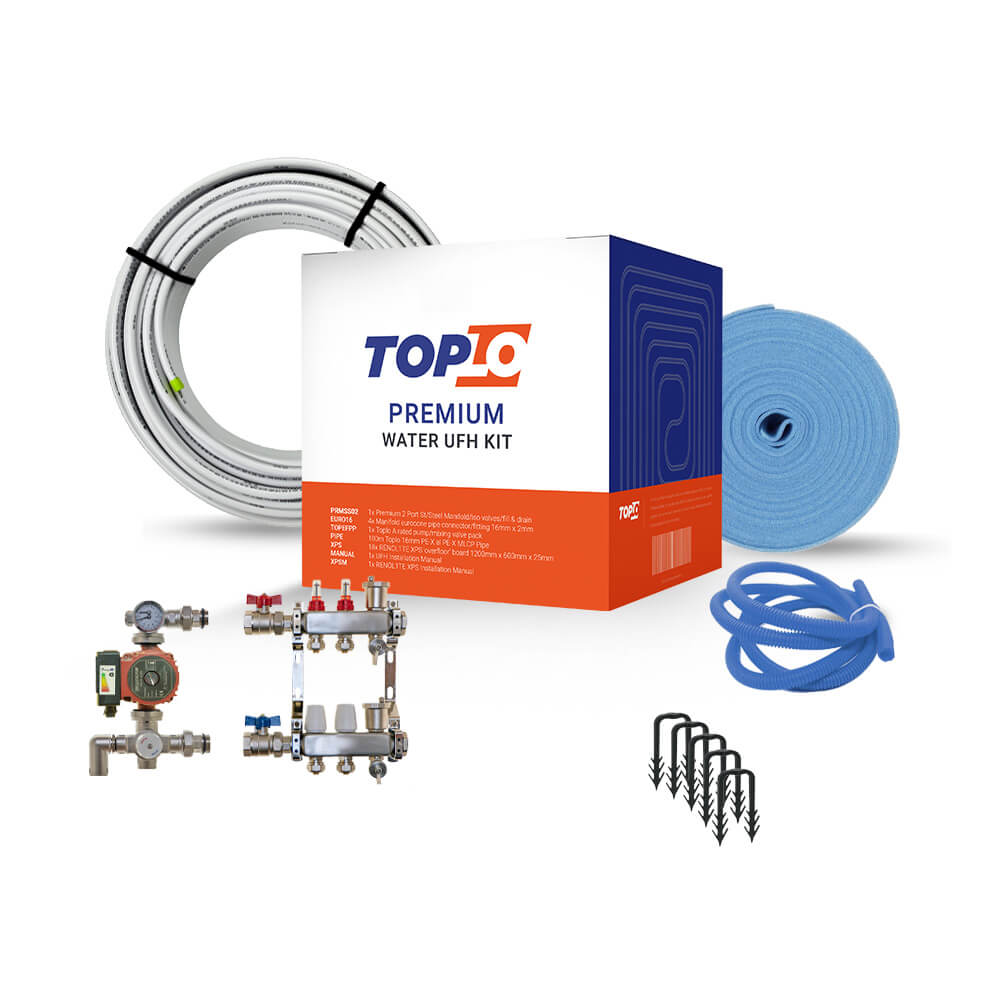

Compact prefabricated kit includes the thermostatic mixing valve, an ERP rated 7 metre circulating pump, and a flow manifold connection tee piece which includes 1/2" FBSP tapping.

Thermostats / Controls (4)

Control options, for other model stats or 12v networked stats view our controls section for a full list or contact us.

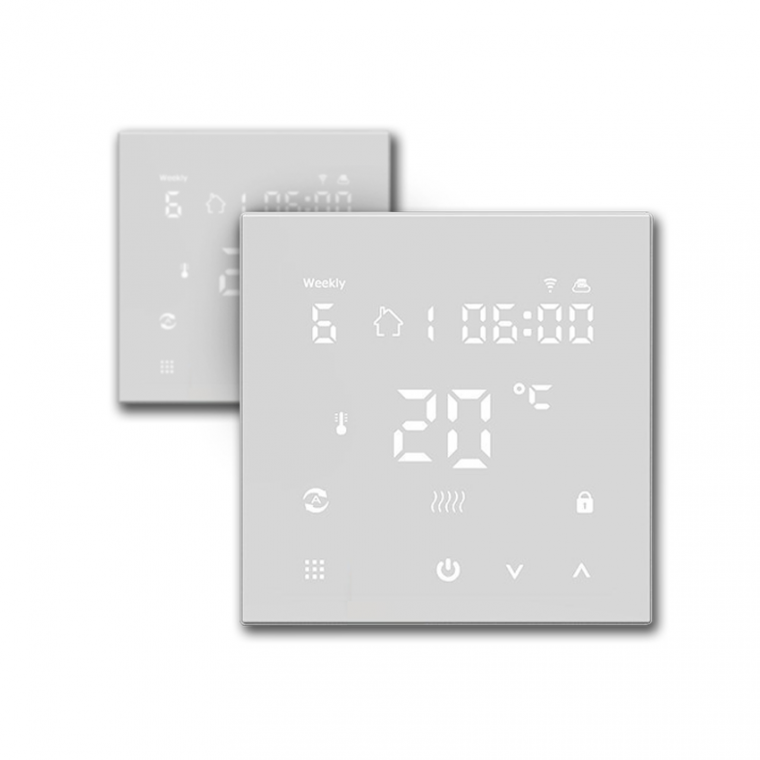

TopLo Wired 230v Thermostat (Ice White) £44.95
WiFi app enabled Thermostat (Wired 230v), no hub required.

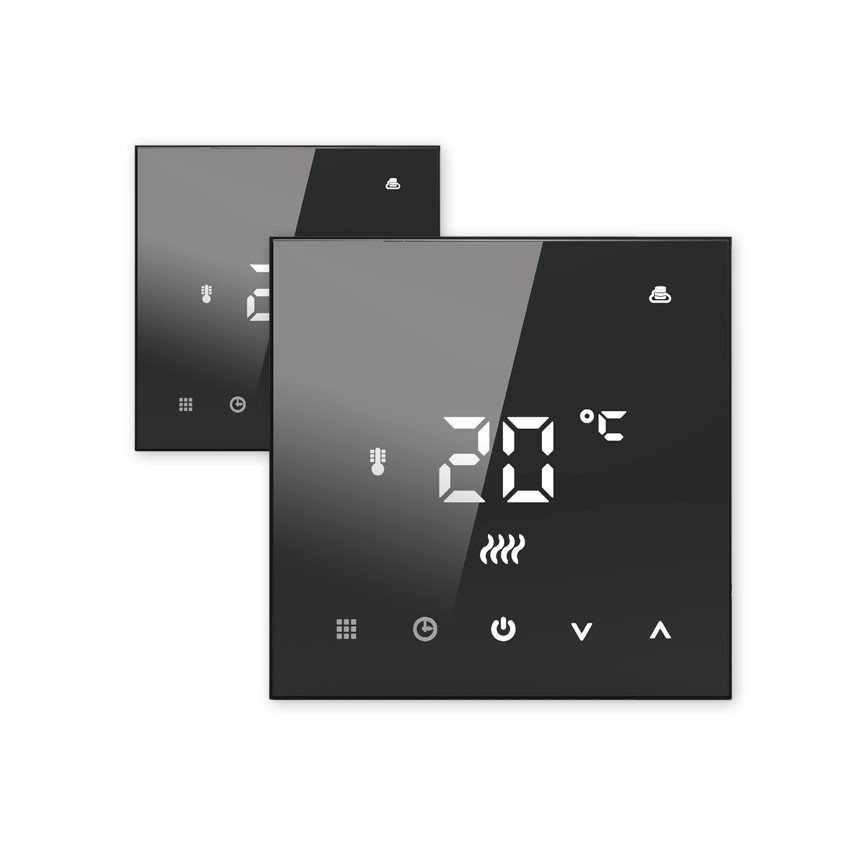

TopLo Wired 230v Thermostat (Black) £44.95
WiFi app enabled Thermostat (Wired 230v), no hub required.

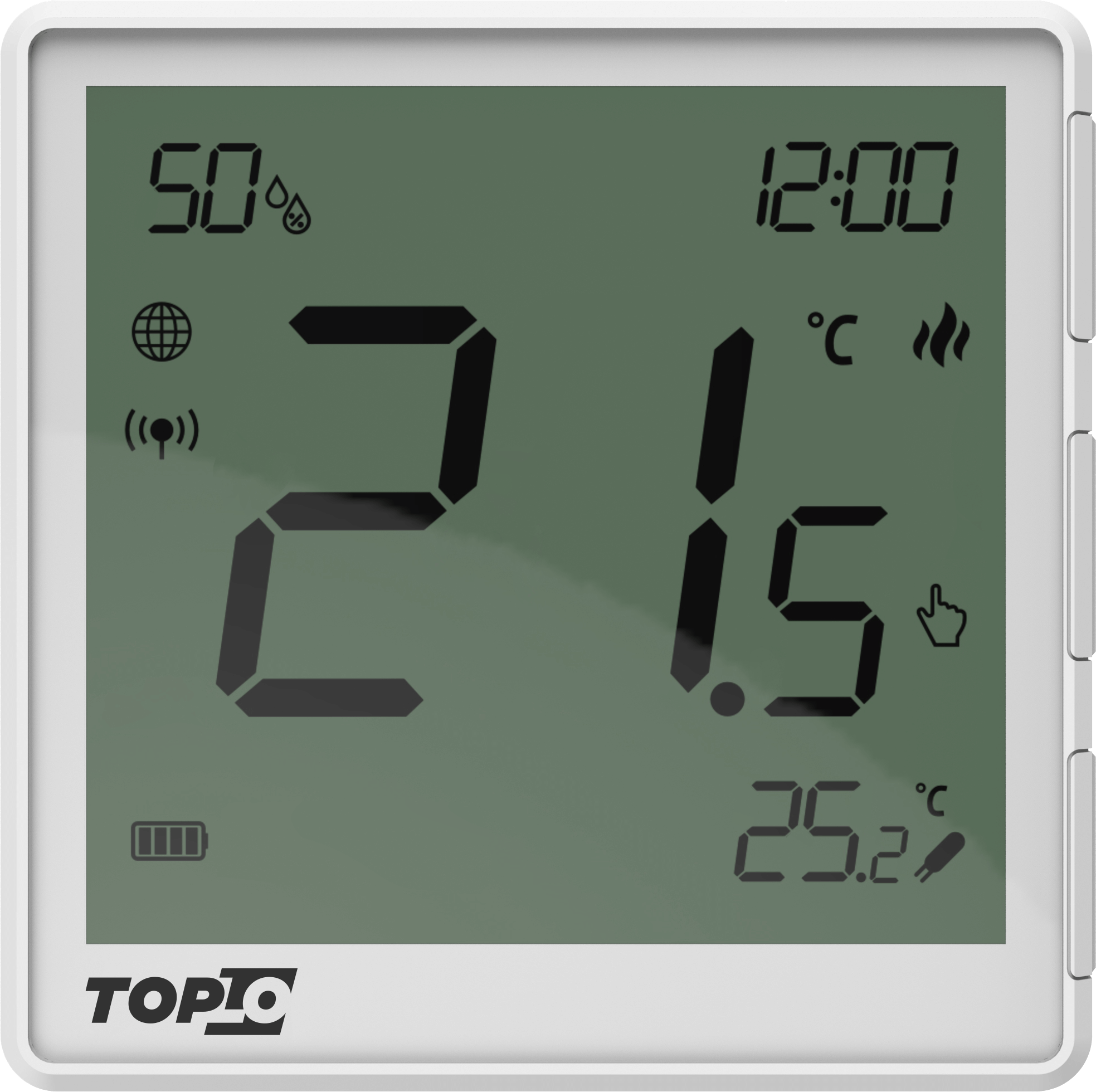

TopLo Smart WIRELESS WiFi (White) £54.99
Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.

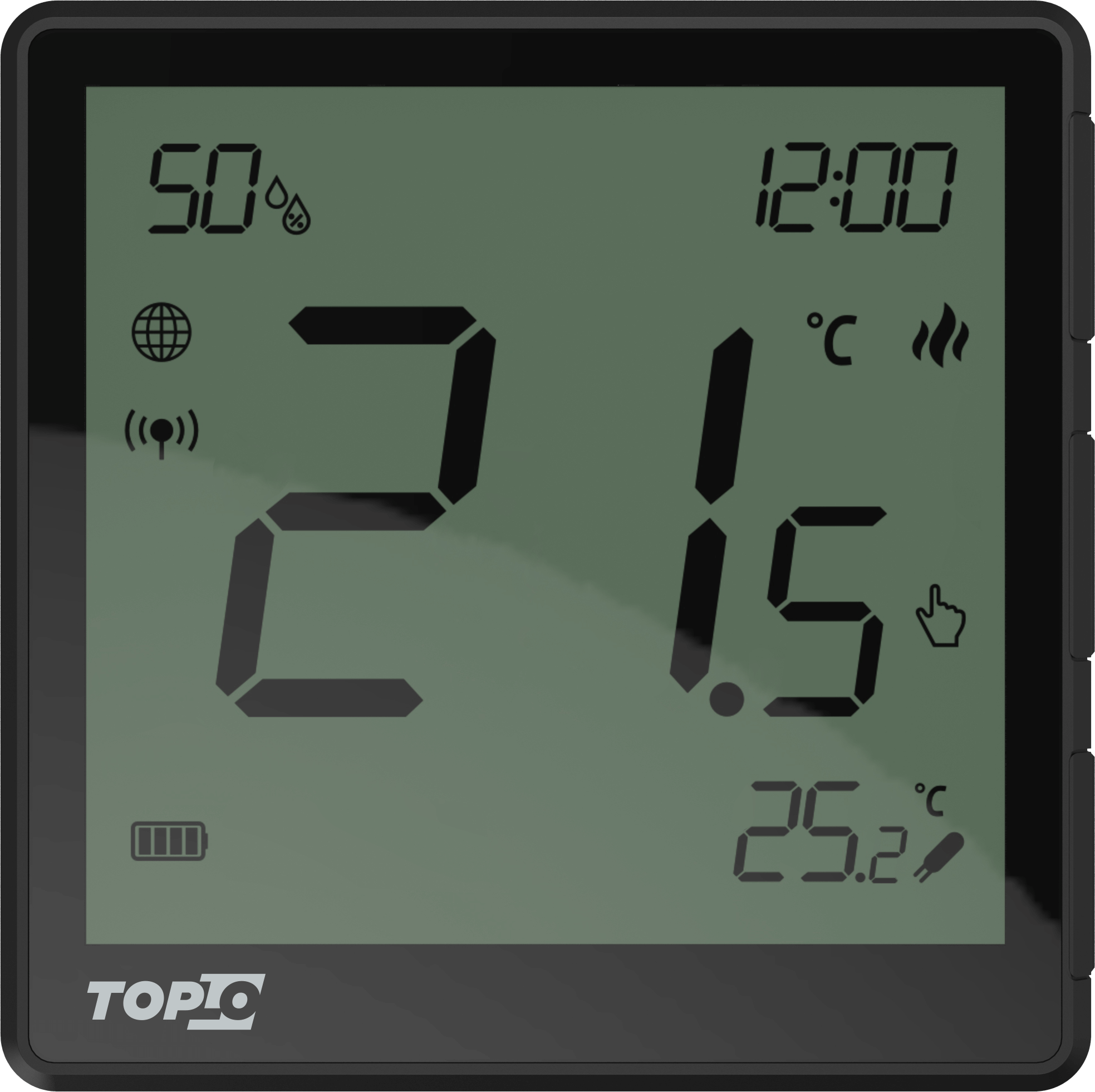

TopLo Smart WIRELESS WiFi (Black) £54.99
Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.

Premium Underfloor Heating – 2 Port 200m Kit (Max Floor Coverage: 40m²)
Component	Description
Manifold	2 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	50m
Pipe Conduit	2m
Staples	400
Pipe	200m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	40m² @ 200mm, 30m² @ 150mm, 20m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 3 Port 300m Kit (Max Floor Coverage: 60m²)
Component	Description
Manifold	3 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	50m
Pipe Conduit	3m
Staples	600
Pipe	300m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	60m² @ 200mm, 45m² @ 150mm, 30m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 4 Port 400m Kit (Max Floor Coverage: 80m²)
Component	Description
Manifold	4 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	75m
Pipe Conduit	4m
Staples	800
Pipe	400m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	80m² @ 200mm, 60m² @ 150mm, 40m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 5 Port 500m Kit (Max Floor Coverage: 100m²)
Component	Description
Manifold	5 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	100m
Pipe Conduit	5m
Staples	1000
Pipe	500m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	100m² @ 200mm, 75m² @ 150mm, 50m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 6 Port 600m Kit (Max Floor Coverage: 120m²)
Component	Description
Manifold	6 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	125m
Pipe Conduit	6m
Staples	1200
Pipe	600m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	120m² @ 200mm, 90m² @ 150mm, 60m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 7 Port 700m Kit (Max Floor Coverage: 140m²)
Component	Description
Manifold	7 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	150m
Pipe Conduit	7m
Staples	1400
Pipe	700m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	140m² @ 200mm, 105m² @ 150mm, 70m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 8 Port 800m Kit (Max Floor Coverage: 160m²)
Component	Description
Manifold	8 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	150m
Pipe Conduit	8m
Staples	1600
Pipe	800m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	160m² @ 200mm, 120m² @ 150mm, 80m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 9 Port 900m Kit (Max Floor Coverage: 180m²)
Component	Description
Manifold	9 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	175m
Pipe Conduit	9m
Staples	1800
Pipe	900m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	180m² @ 200mm, 135m² @ 150mm, 90m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 10 Port 1000m Kit (Max Floor Coverage: 200m²)
Component	Description
Manifold	10 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	200m
Pipe Conduit	10m
Staples	2000
Pipe	1000m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	200m² @ 200mm, 150m² @ 150mm, 100m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 11 Port 1100m Kit (Max Floor Coverage: 220m²)
Component	Description
Manifold	11 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	225m
Pipe Conduit	11m
Staples	2200
Pipe	1100m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	220m² @ 200mm, 165m² @ 150mm, 110m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included

Premium Underfloor Heating – 12 Port 1200m Kit (Max Floor Coverage: 240m²)
Component	Description
Manifold	12 Port stainless steel manifold with drain points, air vents, flow meters, and isolation ball valves
Pump Pack	‘Easy fit’ pack with EuP A-rated modulating circulating pump and blending valve
Edge Insulation	250m
Pipe Conduit	12m
Staples	2400
Pipe	1200m x 16mm MLCP PE-X al PE-X, WRAS/CE certified, ISO 9001:2008, 10 bar, 40–95°C
Kit Coverage	240m² @ 200mm, 180m² @ 150mm, 120m² @ 100mm
Connections	Brass pump & 22mm compression pipe unions
Manual	Included
