Premium Plus TopLo Low Profile Kit - Circles and Straight Boards

SKU: TOPLO

Combination of Circles and Straight Only offers a cost effective option for installation, around 15% cheaper whilst still offering great performance.

18mm Fermacell Gypsum Fibre boards for the ultimate low profile system. The boards/compound warm up creating thermal mass. System uses 12mm pipe at 150mm spacing. Produces up to (125W/m²) output.

Not to be confused with any EPS and/or non foiled XPS system.

Request Price Match

Size (13)

Thermostats / Controls (4)

Control options, for other model stats or 12v networked stats view our controls section for a full list or contact us.

TopLo Wired 230v Thermostat (Ice White) £44.95
WiFi app enabled Thermostat (Wired 230v), no hub required.
TopLo Wired 230v Thermostat (Black) £44.95
WiFi app enabled Thermostat (Wired 230v), no hub required.
TopLo Smart WIRELESS WiFi (White) £54.99
Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.
TopLo Smart WIRELESS WiFi (Black) £54.99
Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.

TOPLO 10M2
PPLUS02	1x Premium Plus 2 Port S/Steel Manifold/iso valves/temp gauges
EURO12	4x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	100x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	6x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	12x Toplo STRAIGHT Overlaypanel 1200mm x600mm x 18mm
50PVC	25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 15M2
PPLUS02	1x Premium Plus 2 Port S/Steel Manifold/iso valves/temp gauges
EURO12	4x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	100x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	9x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	16x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 20M2
PPLUS02	1x Premium Plus 2 Port S/Steel Manifold/iso valves/temp gauges
EURO12	4x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	150x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	10x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	22x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 25M2
PPLUS03	1x Premium Plus 3 Port S/Steel Manifold/iso valves/temp gauges
EURO12	6x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	200x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	12x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	27x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 30M2
PPLUS03	1x Premium Plus 3 Port S/Steel Manifold/iso valves/temp gauges
EURO12	6x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	250x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	16x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	30x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 35M2
PPLUS03	1x Premium Plus 3 Port S/Steel Manifold/iso valves/temp gauges
EURO12	6x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	250x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	20x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	32x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 40M2
PPLUS04	1x Premium Plus 4 Port S/Steel Manifold/iso valves/temp gauges
EURO12	8x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	300x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	22x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	38x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 45M2
PPLUS06	1x Premium Plus 6 Port S/Steel Manifold/iso valves/temp gauges
EURO12	10x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	350x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	23x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	44x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 50M2
PPLUS07	1x Premium Plus 7 Port S/Steel Manifold/iso valves/temp gauges
EURO12	10x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	400x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	26x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	48x Toplo STRAIGHT Overlay panel 1200mm x 600mm x 18mm
50PVC	50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 60M2
PPLUS02	1x Premium Plus 7 Port S/Steel Manifold/iso valves/temp gauges
EURO12	12x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	450x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	30x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	58x Toplo STRAIGHT Overlaypanel 1200mm x600mm x 18mm
50PVC	50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 70M2
PPLUS02	1x Premium Plus 7 Port S/Steel Manifold/iso valves/temp gauges
EURO12	14x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	500x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	32x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	70x Toplo STRAIGHT Overlaypanel 1200mm x600mm x 18mm
50PVC	75x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 80M2
PPLUS02	1x Premium Plus 8 Port S/Steel Manifold/iso valves/temp gauges
EURO12	16x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	600x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	36x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	80x Toplo STRAIGHT Overlaypanel 1200mm x600mm x 18mm
50PVC	100x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

TOPLO 90M2
PPLUS02	1x Premium Plus 9 Port S/Steel Manifold/iso valves/temp gauges
EURO12	18x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP	1x Wilo Yonos Para pump/mixing valve pack
PEX12	650x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN	42x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
TOPSTR	88x Toplo STRAIGHT Overlaypanel 1200mm x600mm x 18mm
50PVC	100x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL	1x UFH Installation Manual

£0.00 (+ VAT)

Need help?

Send us your floor plans and we will create you a free no-obligation specification & quote.

Send Plans

Product Details

Reasons to choose TOPLO Floor Heating System

Super slim! A Panel thickness just 18mm made from Fermacell Gypsum Fibre, far superior in performance to EPS and XPS systems.
The gypsum boards warm up creating thermal mass unlike EPS and XPS system which insulate the pipes.
High heat output retrofit system - up to 125wm2
Energy-saving low temperature system.
Optimal heat transfer.
Rapid response time - comparable to radiator heat up times.
Can be used over any floor construction.
Can be used with any floor covering.
Suitable for boilers, heat pumps etc.

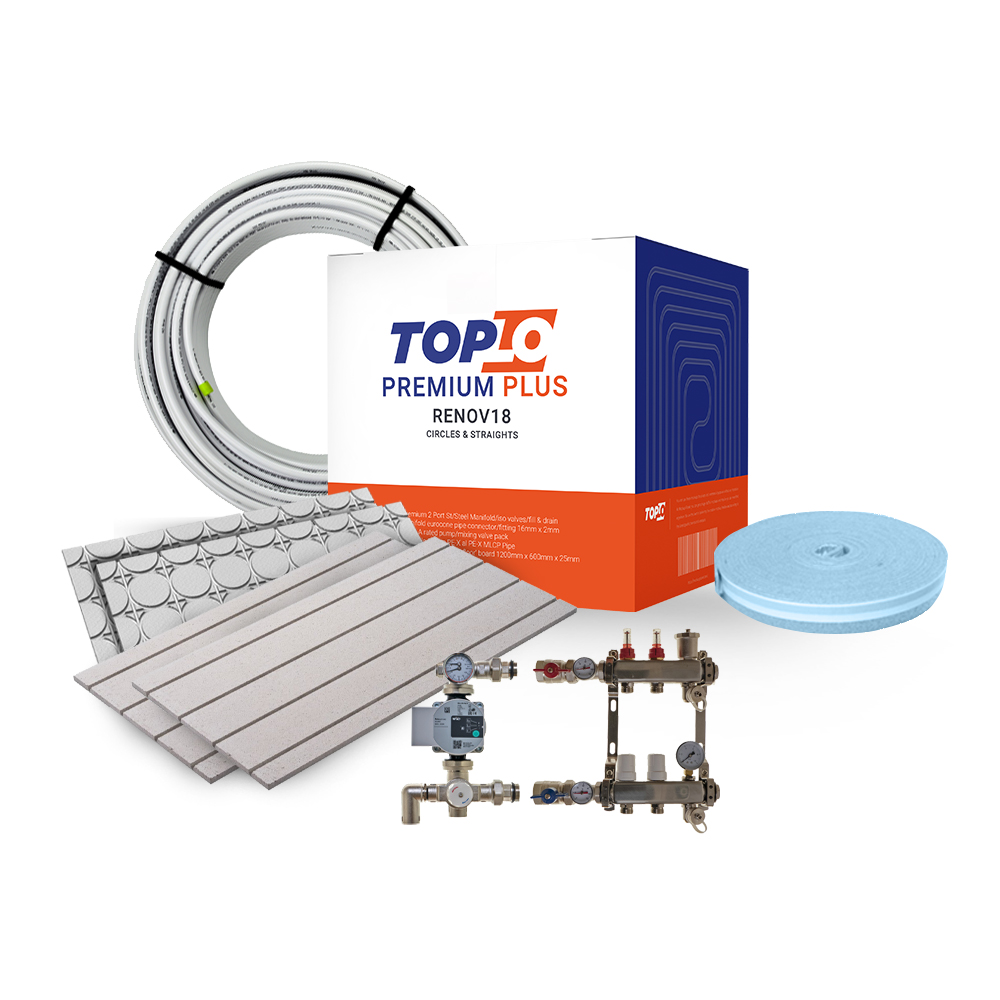

Please note for clarity not all the parts supplied with this kit are shown in photo.
