Premium Plus TopLo Low Profile Underfloor Heating Kit

SKU: TOPLOC

18mm Fermacell Gypsum Fibre boards for the ultimate low profile system. All circle design offers flexibility to make adjustments during installation, premium Heat distribution with no cold spots and greater performance.

The boards/compound warm up creating thermal mass. System uses 12mm pipe at 150mm spacing. Produces up to (125W/m²) output.

Not to be confused with any EPS and/or non foiled XPS system.

Request Price Match
Size (13)
Thermostats / Controls (4)

Control options, for other model stats or 12v networked stats view our controls section for a full list or contact us.

  • TopLo Wired 230v Thermostat (Ice White)
    WiFi app enabled Thermostat (Wired 230v), no hub required.
  • TopLo Wired 230v Thermostat (Black)
    WiFi app enabled Thermostat (Wired 230v), no hub required.
  • TopLo Smart WIRELESS WiFi (White)
    Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.
  • TopLo Smart WIRELESS WiFi (Black)
    Can be controlled wirelessly via a smart app, using the TopLo Gateway Hub.
Control Pack

Control pack include all the essential components based on your selected kit size and thermostat options.

TOPLOC 10M2
PPLUS02 1x Premium Plus 2 Port S/Steel Manifold/iso valves/temp gauges
EURO12 4x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 100x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 16x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 15M2
PPLUS02 1x Premium Plus 2 Port S/Steel Manifold/iso valves/temp gauges
EURO12 4x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 100x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 24x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 20M2
PPLUS02 1x Premium Plus 2 Port S/Steel Manifold/iso valves/temp gauges
EURO12 4x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 150x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 30x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 25M2
PPLUS03 1x Premium Plus 3 Port S/Steel Manifold/iso valves/temp gauges
EURO12 6x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 200x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 38x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 30M2
PPLUS03 1x Premium Plus 3 Port S/Steel Manifold/iso valves/temp gauges
EURO12 6x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 250x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 46x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 35M2
PPLUS03 1x Premium Plus 3 Port S/Steel Manifold/iso valves/temp gauges
EURO12 6x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 250x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 52x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 25x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 40M2
PPLUS04 1x Premium Plus 4 Port S/Steel Manifold/iso valves/temp gauges
EURO12 8x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 300x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 60x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 45M2
PPLUS06 1x Premium Plus 6 Port S/Steel Manifold/iso valves/temp gauges
EURO12 10x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 350x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 68x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 50M2
PPLUS07 1x Premium Plus 7 Port S/Steel Manifold/iso valves/temp gauges
EURO12 10x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 400x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 74x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 60M2
PPLUS07 1x Premium Plus 7 Port S/Steel Manifold/iso valves/temp gauges
EURO12 12x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 450x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 88x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 50x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 70M2
PPLUS07 1x Premium Plus 7 Port S/Steel Manifold/iso valves/temp gauges
EURO12 12x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 500x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 102x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 75x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 80M2
PPLUS07 1x Premium Plus 8 Port S/Steel Manifold/iso valves/temp gauges
EURO12 16x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 600x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 116x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 75x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
TOPLOC 90M2
PPLUS07 1x Premium Plus 9 Port S/Steel Manifold/iso valves/temp gauges
EURO12 18x Manifold eurocone pipe connector/fitting 12mm x 1.6mm
WEFPP 1x Wilo Yonos Para pump/mixing valve pack
PEX12 650x PE-X al PE-X 12mm Multi Layer pipe (per m)
TOPREN 130x Toplo Renov18 Overlay Panel 1200mm x 600mm x 18mm 0.72m²
50PVC 100x Edge Insulation 50m Polythene with plastic apron (Per M)
MANUAL 1x UFH Installation Manual
£0.00 (+ VAT)

Need help?

Send us your floor plans and we will create you a free no-obligation specification & quote.

Send Plans

Product Details

Reasons to choose TOPLO Floor Heating System
  • Super slim! A Panel thickness just 18mm made from Fermacell Gypsum Fibre, far superior in performance to EPS and XPS systems.
  • The gypsum boards warm up creating thermal mass unlike EPS and XPS system which insulate the pipes.
  • High heat output retrofit system - up to 125wm2
  • Energy-saving low temperature system.
  • Optimal heat transfer.
  • Rapid response time - comparable to radiator heat up times.
  • Can be used over any floor construction.
  • Can be used with any floor covering.
  • Suitable for boilers, heat pumps etc.

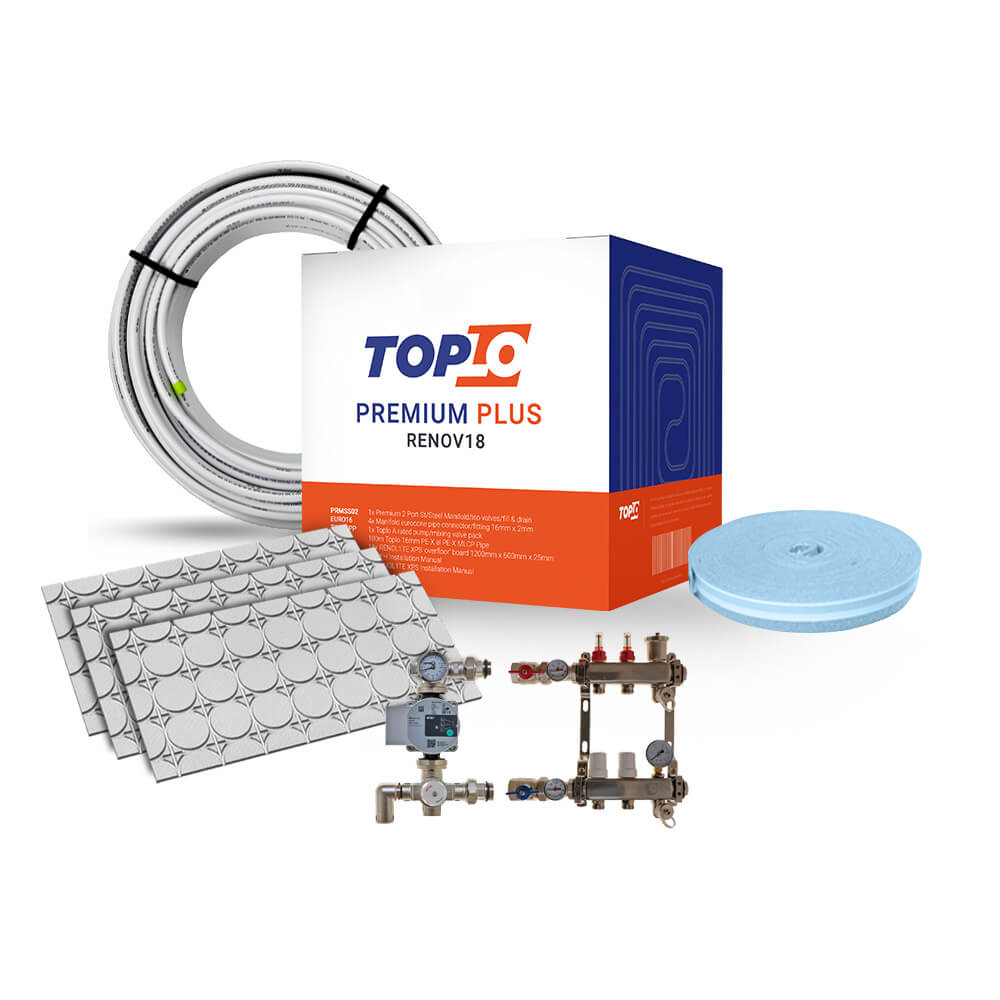

Please note for clarity not all the parts supplied with this kit are shown in photo.
